SoundMeter Pro 2020
iOS Universel / Utilitaires
SoundMeter Pro 2020 is not recommended for new purchases. SoundMeter X offers perpetual license and subscription options for the latest tools and features.
SoundMeter Pro turns your iOS device into a handheld data-logging sound level meter (SLM), data-logging noise dosimeter, multi-channel data recorder, and real-time analyzer (RTA).
Input signals can be acquired from the current audio input path (iOS automatically selects the audio input path according to which external audio devices, if any, are connected to your iOS device). Sensitivity calibration can also be performed for any audio input device or input channel.
In addition to real-time sound level measurements, SoundMeter can stream raw sound data to audio files, and store acquired sound level data, including date, time, and location, in CSV or TXT (tab-delimited) files, MAT-files, or high-resolution PDF images for later retrieval from your device.
Features:
- Level Meter
-- Lp, Leq, Lx sound levels
-- Standard Flat, A, C frequency weighting
-- Standard Fast, Slow, Impulse time weighting
-- Data logging. Data can be logged as often as every 0.1 seconds for up to 8 hours, every second for up to 72 hours, or every 10 seconds for up to two weeks.
-- Event notifications
- Max Levels Meter
-- Traffic-light-style meters make it easy to monitor 2 separate sound level thresholds in 2 independent user-defined frequency bands.
-- Define lower (warning) and higher (limit) sound level thresholds for overall (full audio band) levels as well as for individual octave frequency bands.
-- Store user-defined thresholds in files for later recall.
-- View auxiliary sound level or octave spectrum display with the device in landscape orientation.
- Noise Dosimeter
-- 8-hour Noise Dose, Projected Dose, TWA calculations
-- Criterion Levels: 80, 85, 90 dB
-- Exchange Rates: 3, 4, 5 dB
-- Data logging. Data can be logged as often as every 0.1 seconds for up to 8 hours, every second for up to 72 hours, or every 10 seconds for up to two weeks.
-- Event notifications

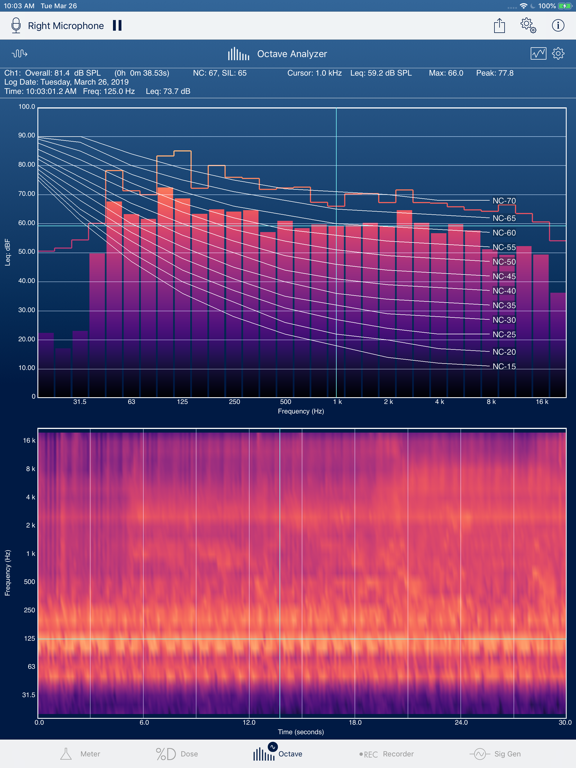

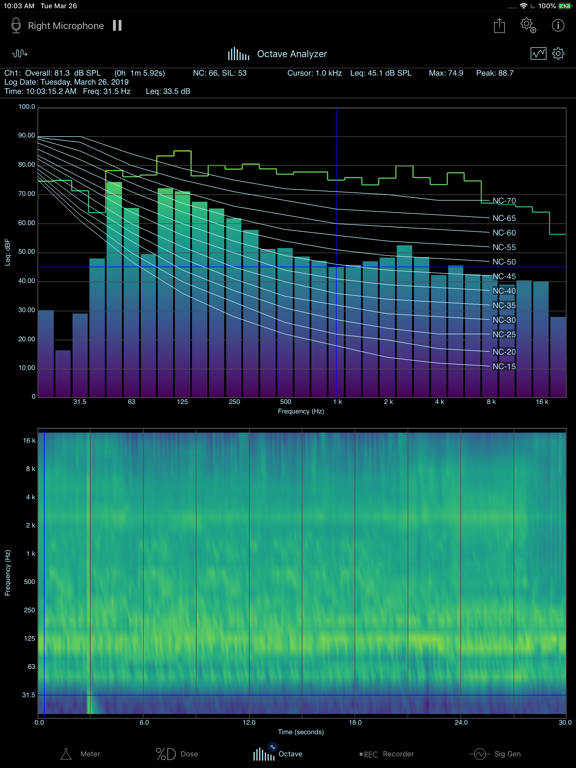

- Octave Analyzer (RTA)
-- Lp, Leq, Lx sound levels
-- Supports whole or 1/3-octave frequency bands
-- Standard Flat, A, C frequency weighting
-- Standard Fast, Slow, Impulse time weighting
-- Data logging. Data can be logged as often as every 0.1 seconds for up to 8 hours, every second for up to 72 hours, or every 10 seconds for up to two weeks.
-- Event notifications
- Data Recorder
-- Supports up to 8 channels
-- Live monitoring of recorded data
-- Metadata (including calibrated sensitivity) embedded in audio file (AIF, CAF, WAV), optionally saved in separate data file
- Signal Generator
-- Left and right outputs assigned to arbitrary hardware output channels
-- Random and pseudorandom (periodic) noise sequences with white or pink spectrum
-- Linear and logarithmic frequency sweeps
-- Dual periodic waveforms with arbitrary frequency and phase difference
Learn more about SoundMeter Pro 2020 at FaberAcoustical.com.
SoundMeter Pro 2020 will receive major upgrades, consistent with those available in the SoundMeter X Pro subscription, through calendar year 2021, after which it will receive maintenance updates for a limited time. It can be used indefinitely thereafter on a compatible version of iOS.
Quoi de neuf dans la dernière version ?
- This update corrects an issue with continuous multi-channel recording to multiple audio files in the Data Recorder tool.
- Faber Account access has been added to SoundMeter Pro 2020 to register the app for eligibility for a discount on the SoundMeter X version 13 Pro perpetual license. Creating or signing in to a Faber Account is optional.
- Corrected a NC calculation issue in the Octave Analyzer when working with 1/3-octave-band filters.
- Other minor cosmetic improvements.
- Now requires iOS 14 or later.
