AnchorPull Calc
iOS Universel / Utilitaires
AnchorPull Calc is a fast, offline concrete anchor capacity calculator for structural engineers, contractors, and inspectors. Determine pullout and shear strength of cast-in-place and post-installed anchors using the ACI 318 Concrete Capacity Design (CCD) method.
WHAT IT CALCULATES:
Tension (Pullout) Capacity:
- Concrete breakout strength per ACI 318 Chapter 17
- Projected failure area (ANc) with edge and spacing effects
- Modification factors for cracking, eccentricity, and lightweight concrete
- Basic breakout strength (Nb) based on embedment depth and concrete strength
Shear Capacity:

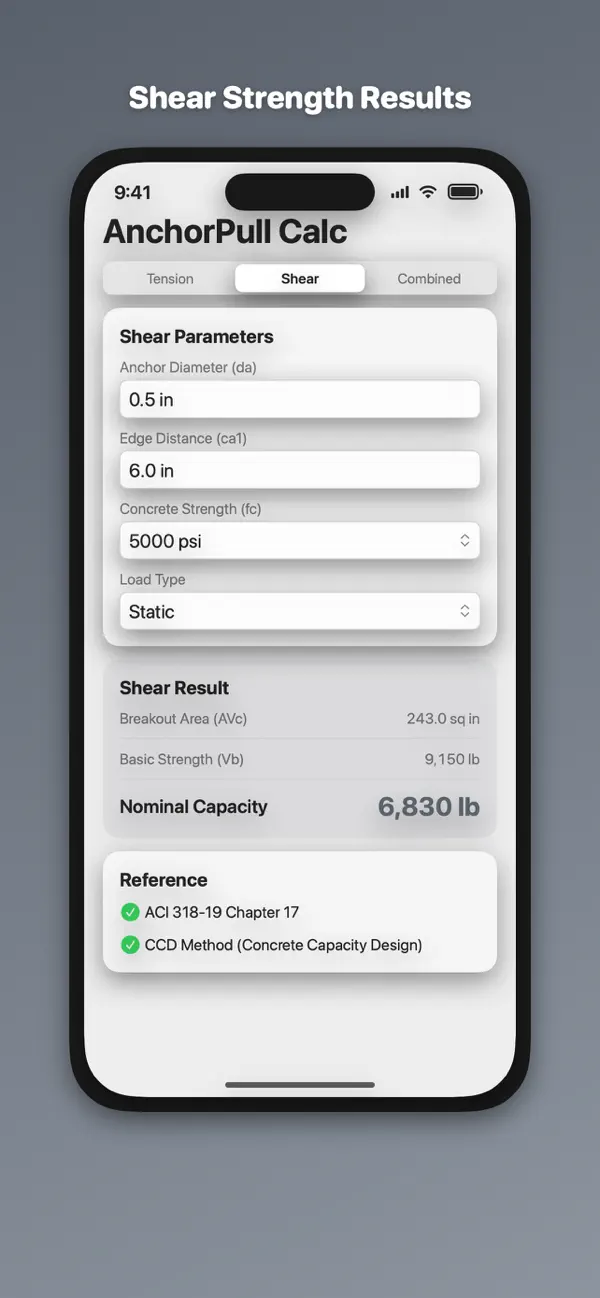

- Concrete breakout strength in shear
- Pryout strength for short, stiff anchors
- Edge distance effects on projected shear area (AVc)
- Modification factors for cracked concrete and load direction
Combined Loading:
- Tension-shear interaction check per ACI 318-19 Section 17.6
- Tri-linear and elliptical interaction curves
- Demand-to-capacity ratios for combined loading
ANCHOR TYPES SUPPORTED:
- Cast-in-place headed bolts and studs
- Post-installed expansion anchors
- Post-installed adhesive anchors
- Single anchors and anchor groups
KEY FEATURES:
- ACI 318-19 Chapter 17 compliant
- CCD method with all modification factors

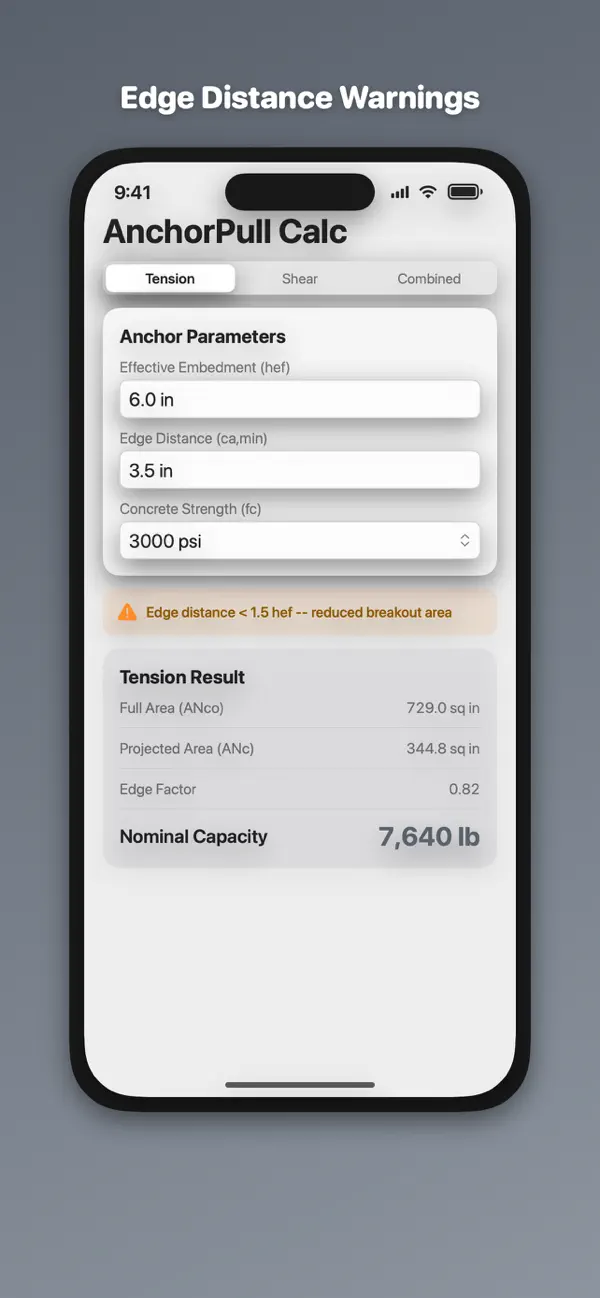

- Edge distance and spacing warnings
- Cracked and uncracked concrete conditions
- Normal weight and lightweight concrete
- Works completely offline
- No account or login required
BUILT FOR THE JOB SITE:
Whether you are a structural engineer, building inspector, or concrete contractor, AnchorPull Calc gives you quick anchor capacity checks based on ACI 318 concrete breakout provisions. Enter your anchor parameters and get nominal pullout and shear capacities in seconds.
Supports cast-in-place and post-installed anchors per ACI 318-19 CCD method with full modification factors for edge distance, spacing, cracking, and eccentricity.
