Pipedata-Plus
iOS Universel / Productivité
Pipedata-Plus has dimensional and weight information for over 160 common piping components with the addition of specialities such as strainers, weldoflanges etc. Pipedata-Plus also includes design aids, safe spans, pipe flexibility, spacing and more. The interface is enhanced with colour coded components and parameters.
Based on the latest ASME piping dimensional specifications it shows Metric, U.S. Customary Units and Inch Fractions, NPS and DN pipe sizes and includes audited valve weights, flange and pipe weights and all piping component weights.
DATA SUMMARY
Pipedata-Plus Provides
Piping Dimensions and Weights
Flange Dimensions and Weights
Valve Dimensions and Weights
Piping Fittings Dimensions and Weights
for the following components:
FLANGES

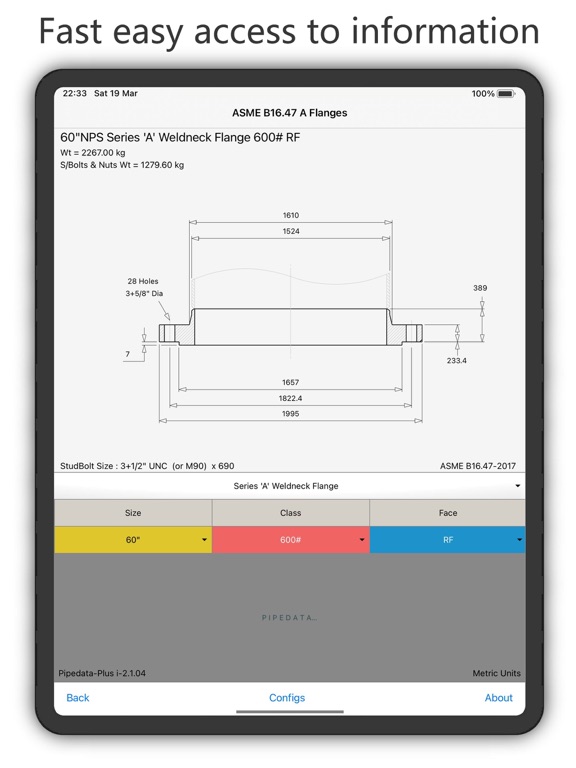

ASME B16.5 Flanges
WeldNeck Flange
Slip On Flange
Blind Flange
Threaded Flange
SocketWelded FlangeLapped Flange
Long Welding Neck Flange
ASME B16.47 Series A Flanges
WeldNeck Flange
Blind Flange
ASME B16.47 Series B Flanges
WeldNeck Flange
Blind Flange
Orifice Flanges ASME B16.36
WeldNeck
Slip On
Threaded
API-6A Flanges
API Type 6B
Weldneck
Threaded Flange
Blind
API Type 6BX
WeldNeck
Blind and Test Flange
Reducing Flanges AMSE B16.5
Threaded
Slip-On
ASME Compact Flanges
Standard
Swivel
Blind
Hub and Clamp
Hub-Clamp Pipe Connector
Din Flanges EN1092-1:2013
Blind Flange
Threaded Flange
Flat Flange
Weldneck Flange
Lapped Flange
BS 10 Flanges
TABLES A,D,E,F,H,J,K.R & S
PIPE FITTINGS
ASME B16.9 Butt Welded Pipe Fittings
ASME B16.11 Threaded Pipe Fittings
ASME B16.11 Socket Welded Pipe Fittings
VALVES
ASME B16.10
Flanged Valves
Gate Valve
Globe Valve
Ball Valve
Control Valve (for layout)
Swing Check
Wafer Check
Wafer type Butterfly
Lug type Butterfly
Buttwelded Valves
Gate
Globe
Ball Valve
Check
Threaded Valves
Gate
Globe
Horizontal Check
Vertical Check
Socketwelded Valves
Gate
Globe
Horizontal Check
Vertical Check
BLINDS AND SPACERS
ASME B16.48
Spectacle Blind
Line Spade and Spacer
RTJ Male Type Reversible Spade
RTJ Male Type Line Spade
WELDED BRANCHES

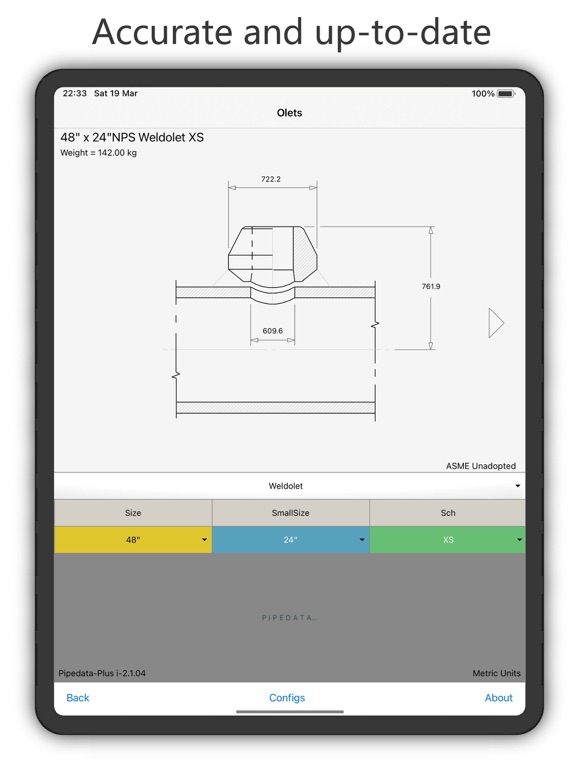

Olets
ButtWelded
Threaded
SocketWelded
Weldoflange
Elbowflange
Latroflange
Nipoflange
Pipets
ButtWelded
Threaded
SocketWelded
Flanged
GASKETS
None Metallic Flat Ring for ASME B16.5 Flanges
None Metallic Flat Ring for ASME B16.47 Series A Flanges
None Metallic Flat Ring for ASME B16.47 Series B Flanges
Spiral wound for ASME B16.5 Flanges
Spiral wound for ASME B16.47 Series A Flanges
Spiral wound for ASME B16.47 Series B Flanges
RTJ soft iron ring type R - ASME B16.21
RTJ soft iron ring type RX - ASME B16.21
RTJ soft iron ring type BX - ASME B16.21
PIPE
ASME B16.10M/19M
Pipe By Schedule
Pipe By Wall Thickness
NUTS
ISO Nuts
UNC Nuts
DESIGN AIDS
ASME Composite Dimensions
Pipe Flexibility
Pipe Leg
Pipe Loop
Safe spans
Safe rack spans
Safe Pipe Spacing
Safe Pipe Spacing with Insulation
Safe Flanged Pipe Spacing
Safe Flanged Pipe Spacing With Insulation
Quoi de neuf dans la dernière version ?
A random alert message has been removed from the BS 10 flanges section.
