SmartSDR™ FlexRadio Systems®
macOS / Utilitaires
Official FlexRadio Systems® Client for your Mac
SmartSDR is a full featured FlexRadio client that enables your Mac to operate your FlexRadio device.
It is fully compatible to SmartSDR v1, v2 (including SmartLink), v3 (including MultiFlex and SmartControl) and v4.
Important: This App requires a FlexRadio Systems® Series-6000 or 8000 Software Defined Radio (SDR).
FACTS AND FEATURES:
■ macOS 26 (Tahoe) App, backward compatible to macOS 14
■ Runs natively on Silicon as well as Intel Macs
SmartSDR offers all features of SmartSDR for Windows such as:
■ Unlimited number of Slices, Panadapters (limited only by Radio model)
■ Maintain all Radio, Slice and Panadapter settings
■ SmartLink™ remote access support
■ APD / SmartSignal™ support
■ MultiFlex™ support
■ SmartControl™ support
■ Native Power Genius (PGXL), Tuner Genius (TGXL), Antenna Genius (AGXL) and Rotator Genius (RGXL) Support (no Windows Software needed)
■ And all the other features of the Windows Version (including Diversity)
There is no longer need for running SmartSDR for Windows on Bootcamp, Parallels or a separate PC because these features are also included:
■ Radio Firmware Updates
■ Setting up and registering SmartLink - you can even maintain multiple SmartLink accounts
■ Installation of Region (Turf) Files
■ Backup / Restore Radio Configuration and Memories
In addition, the following extra features are included:
■ Full featured FT8 / FT4 Tool
■ SSTV receiving (NEW!)
■ RTTY now also included
■ CW Decoder
■ APRS (new)
■ Logbook with auto logging and ADIF Im- and UDP Export (Synchronizes with Smartsdr for iOS over iCloud) and LOTW, QRZ.com integration
■ DX-Cluster Tool
■ Band Plan
■ Voice Macros (Voice keyer)
■ And several additional Tools and features

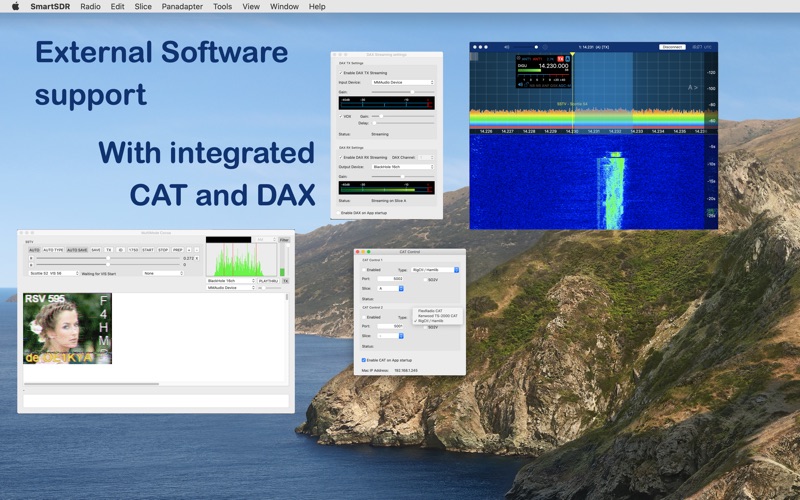

EXTERNAL SOFTWARE SUPPORT
Even though FT8 is included, you can run this App along with your favorite external Software like WSJT-X, fldigi or others because:
■ CAT Support for FlexRadio CAT, Kenwood TS-2000 emulation and RigCtrl / Hamlib
■ DAX TX and RX audio streaming to any device
EXTERNAL PERIPHERALS SUPPORT
■ New: S.A.T. Support with automatic doppler correction. No CAT or USB Cable needed. LEO / Satellite operation was never easier
■ FlexControl support
■ You can use a Midi Controller (like the CTR2, DJ2GO2 or CMD-Micro and others) to fully control your Radio
■ CW Straight Key / Paddle via Midi Controller, FTDI Serial Cable or assigned keyboard keys
■ External microphone support (e.g. for USB microphones)
WHAT YOU NEED:
- A FlexRadio Systems® FLEX-6000 or 8000 series radio
- A Mac which runs at least Mac OS 14
SUPPORTED SDR HARDWARE:
FLEX-6300, FLEX-6400, FLEX-6400M, FLEX-6500, FLEX-6600, FLEX-6600M, FLEX-6700, FLEX-8400, FLEX-8400M, FLEX-8600, FLEX-8600M
Find out more here: https://ham-radio-apps.com
Read the Manual: http://go-to.me/smartsdrmac-manual
Quoi de neuf dans la dernière version ?
This update contains the following changes and improvements:
◉ Some Firmware 4 improvements
◉ Introduced a new FT8 Setting 'Auto Select TX slice' to operate with multiple FT8 sessions concurrently
◉ For the Waveshare relay device, the possibility to flash a relay was added
◉ General improvements of the Waveshare and Metropwr Tools
◉ Firmware 4 License information can now be reviewed under the Radio Settings
◉ Firmware 4 Features like NRL, NRS, RNN, NRF, ANFL, ANFT were added under the DSP/OPT button on the Slice detail screen or the Radio Control panel
◉ Firmware 4 noise Floor Position slider feature was added to the left Disp Menu
◉ Note: The Radio needs to be licensed for the Firmware 4 features. If the license is missing, the features will not be displayed. Please see the FlexRadio documentation for more information about Radio Licensing
◉ Implemented some additional improvements and optimizations behind the scenes
Kindly use the ‘CONTACT SUPPORT’ feature under the Help menu of the app in case of questions or issues. I will ensure it is promptly answered or resolved.
Your continued support and valuable feedback play a crucial role in further improving this app.
73s,
Marcus, DL8MRE
