CombinedFooting
iOS Universel / Education

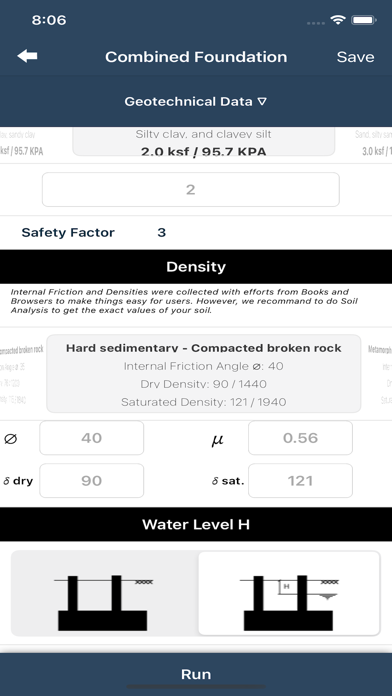

Design and Analysis for a Combined Foundation with Large Bi-axial loads and moment based on ACI code.
- Determine the Location of Resultant and proposing new values to make the resultant concise with the Center of Foundation.
- Check the Stability against Overturning in both Longitudinal and Transversal Direction.
- Check the Stability against sliding in both Longitudinal and Transversal Direction.
- Calculating the value K (Tengs Chart), modified Gross Pressure, Overburden and Pressure Net pressure in both factored and un-factored mode.
- Ultimate Design Total loads Forces and Moments applied on the Foundation.
- Distribution of Pressure under Foundation.
- Shear Force and bending moment Diagram in both direction.
- Two Way (Punching) Shear Capacity Checks under two pedestals.
- One Way Shear Capacity Check.
- Reinforcement Design in both Direction.
- Graphic design showing the reinforcement details in both direction.
Additionally, the application will provide a PDF comprehensive calculation with capability of sharing the same via emails, whatsup, etc,,,
Quoi de neuf dans la dernière version ?
- Code improvement.
- Fix a bug related to bearing capacity verification
- Fix a bug related to moment on the transversal side of Foundation.
